Gravity Diverter Valve

Key Features

  • Divert angle ensures good flow conditions
  • Compact rugged design
  • Smooth internals with negligible lodgement areas
  • Simple access and minimal maintenance
  • Pneumatic or manual versions
  • Good sealing effect

Manufactured in four basic sizes based on a 30 degree divert angle, the units are fabricated versions, allowing them to be tailor made, to suit specific duties and needs. The divert angles can be changed to suit the application and product, with also, the variation of inlet, outlet formats and flanges. The flexibility of our design, also allows heavier duty applications to suit your needs.

Rotolok gravity diverters are available in sizes from 6″ to 16″ with both round and square inlets.

  • Bodies

    Fabricated in Mild or Stainless Steel

  • Flap Valves and Spindles

    Mild or Stainless Steel

  • Wiper Seals

    Polyurethane or food quality rubber

  • Actuation

    Air cylinder or manual

  • Pneumatic Version

    Complete with 5 port, two-way single solenoid spring return valve

  • Limit Switches

    Positioned to indicate flap divert position

All dimensions are in inches unless otherwise stated

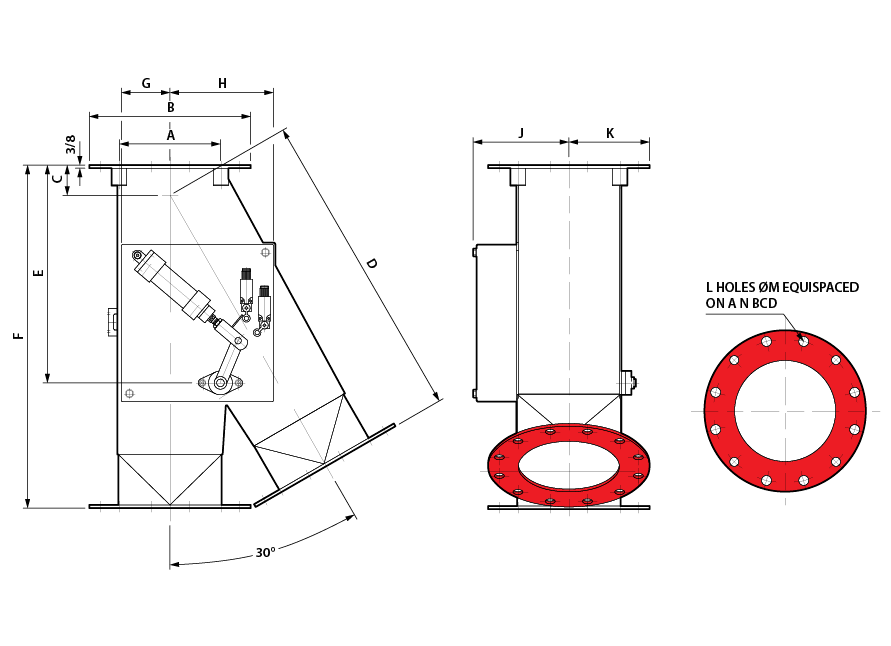

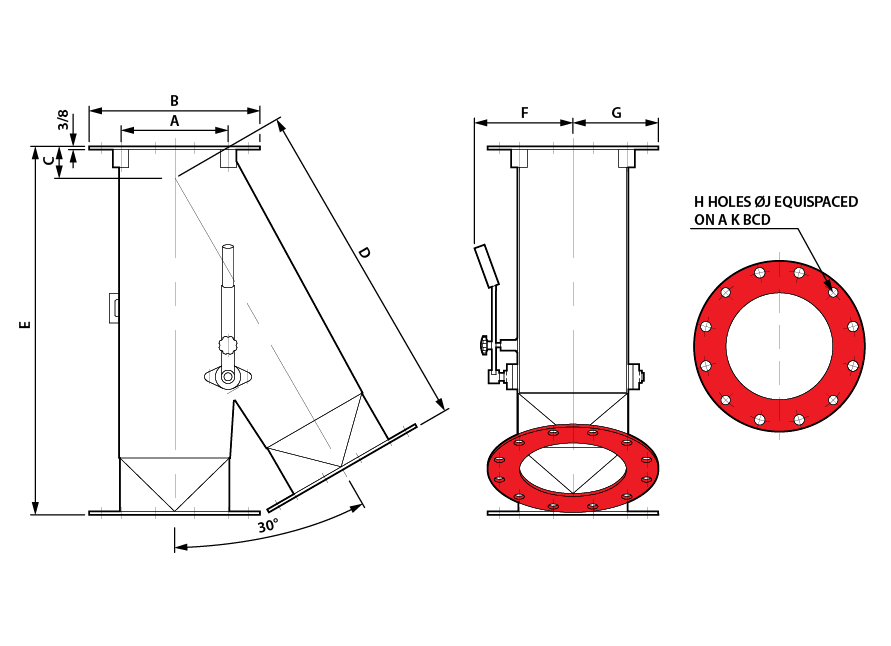

SIZE A B C D E G J K O P R S
6’’ 6’’ 9 ⅞’’ 2 ¾’’ 8 ⅞’’ 9 ⁹⁄₁₆’’ ⁵⁄₁₆’’ 7 ¼’’ 5’’ 8 ½’’ 2 4 ⁵⁄₁₆’’
8’’ 8’’ 11 ¾’’ 3’’ 11 ⅜’’ 11 ³⁄₁₆’’ ⅛’’ 8 ¼’’ 5 ⅞’’ 12 ½’’ 3 3 ⁹⁄₁₆’’
10’’ 10’’ 13 ¾’’ 3 ¼’’ 12 ⅝’’ 13’’ ³⁄₁₆’’ 9 ¼’’ 6 ⅞’’ 12 ½’’ 3 4 ⅛’’
12’’ 12’’ 16’’ 3 ⁹⁄₁₆’’ 15 ⁷⁄₁₆’’ 15 ⅞’’ ⁵⁄₁₆’’ 10 ⅜’’ 8’’ 12 ½’’ 3 4 ¾’’
14’’ 14’’ 18’’ 3 ½’’ 17’’ 17’’ ⁵⁄₁₆’’ 12’’ 9’’ 12 ½’’ 3 5 ½’’
16’’ 16’’ 19 ⅞’’ 5 ⅛’’ 19 ⅝’’ 20 ¾’’ ⁵⁄₁₆’’ 12 ⅜’’ 10’’ 16 ½’’ 4 4 ⅝’’

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G J K L O P R S
6’’ 6’’ 9 ⅞’’ 2 ¾’’ 18 ¾’’ 13 ⅝’’ 21 ½’’ ⁵⁄₁₆’’ 7 ⅜’’ 5’’ 13 ⅜’’ 8 ½’’ 2 4 ⁵⁄₁₆’’
8’’ 8’’ 11 ¾’’ 3’’ 22 ¼’’ 18’’ 25 ¼’’ ⁵⁄₁₆’’ 8 ½’’ 5 ⅞’’ 10 ¾’’ 12 ½’’ 3 3 ⁹⁄₁₆’’
10’’ 10’’ 13 ¾’’ 3’’ 26’’ 21 ⅝’’ 29’’ ⁵⁄₁₆’’ 9 ½’’ 6 ⅞’’ 10 ¼’’ 12 ½’’ 3 4 ⅛’’
12’’ 12’’ 16’’ 3’’ 32 ½’’ 25 ¹³⁄₁₆’’ 35 ½’’ ⁵⁄₁₆’’ 11 ⅛’’ 8’’ 11 ¾’’ 12 ½’’ 3 4 ¾’’
14’’ 14’’ 18’’ 4 ¼’’ 34 ³⁄₁₆’’ 30 ⅜’’ 38 ⁷⁄₁₆’’ ⁵⁄₁₆’’ 12 ⅛’’ 9’’ 13’’ 12 ½’’ 3 5 ½’’

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G J K L O P R S
6’’ 6’’ 9 ⅞’’ 2 ¾’’ 18 ¾’’ 13 ⅝’’ 21 ½’’ ⁵⁄₁₆’’ 7 ⅜’’ 5’’ 13 ⅜’’ 8 ½’’ 2 4 ⁵⁄₁₆’’
8’’ 8’’ 11 ¾’’ 3’’ 22 ¼’’ 18’’ 25 ¼’’ ⁵⁄₁₆’’ 8 ½’’ 5 ⅞’’ 10 ¾’’ 12 ½’’ 3 3 ⁹⁄₁₆’’
10’’ 10’’ 13 ¾’’ 3’’ 26’’ 21 ⅝’’ 29’’ ⁵⁄₁₆’’ 9 ½’’ 6 ⅞’’ 10 ¼’’ 12 ½’’ 3 4 ⅛’’
12’’ 12’’ 16’’ 3’’ 32 ½’’ 25 ¹³⁄₁₆’’ 35 ½’’ ⁵⁄₁₆’’ 11 ⅛’’ 8’’ 11 ¾’’ 12 ½’’ 3 4 ¾’’
14’’ 14’’ 18’’ 4 ¼’’ 34 ³⁄₁₆’’ 30 ⅜’’ 38 ⁷⁄₁₆’’ ⁵⁄₁₆’’ 12 ⅛’’ 9’’ 13’’ 12 ½’’ 3 5 ½’’

All dimensions are in inches unless otherwise stated

SIZE A B C D E F G J K L O P R S
6’’ 6’’ 9 ⅞’’ 2 ¾’’ 18 ¾’’ 13 ⅝’’ 21 ½’’ ⁵⁄₁₆’’ 8 ½’’ 5’’ 14’’ 8 ½’’ 2 4 ⁵⁄₁₆’’
8’’ 8’’ 11 ¾’’ 3’’ 22 ¼’’ 18’’ 25 ¼’’ ⁵⁄₁₆’’ 8 ½’’ 5 ⅞’’ 9 ⅞’’ 12 ½’’ 3 3 ⁹⁄₁₆’’
10’’ 10’’ 13 ¾’’ 3’’ 26 ⅛’’ 21 ⅝’’ 29 ⅛’’ ⁵⁄₁₆’’ 9 ½’’ 6 ⅞’’ 11 ⅞’’ 12 ½’’ 3 4 ⅛’’
12’’ 12’’ 16’’ 3’’ 32 ½’’ 25 ¹³⁄₁₆’’ 35 ½’’ ⁵⁄₁₆’’ 11 ⅛’’ 8’’ 18 ⁵⁄₁₆’’ 12 ½’’ 3 4 ¾’’
